Clean, efficient, and quiet pneumatic unloading – Without a running truck engine

The SKL-E Pack is the perfect solution for stationary unloading of silo vehicles in locations where noise and emissions must be minimized. Equipped with a high-performance oil-free screw compressor from the SKL 700 or SKL 1100 series, this system provides full unloading power for dry bulk materials – independent of the truck’s engine.

Powered by electricity, the SKL-E Pack enables a low-noise, zero-emission unloading process, making it ideal for urban logistics hubs, industrial facilities, or construction sites in residential areas. The optional integrated frequency converter allows variable speed control, adapting the airflow to current needs and minimizing energy consumption for maximum efficiency.

Combining proven CVS compressor technology with smart control options, the SKL-E Pack is a sustainable, cost-efficient, and user-friendly solution designed for the future of bulk material logistics.

Technical highlights

Integrated oil-free screw compressor (SKL 700 or SKL 1100)

Powerful stationary unit for dry bulk materials

Electric direct drive – no need for a running truck engine

Frequency inverter (optional) for variable speed operation

Operating pressure: up to 2.5 bar (g) across full speed range

Plug-and-play system for fast and easy installation

Maintenance-friendly design with integrated oil pump and changeable oil filter

Optional compressed air cooler for thermally stable unloading

Your benefits at a glance

Emission-free & quiet operation – perfect for sensitive urban environments

Energy-saving through demand-based speed control

Lower operating costs – no diesel consumption required

Quick commissioning with a compact, pre-configured system

High system availability thanks to proven CVS compressor components

Minimal maintenance – no ongoing vehicle engine operation necessary

Key features

100% Electric Unloading
No diesel engine required – reduces CO₂ emissions, fuel consumption, and noise during operation.

Flexible Speed Control
The optional frequency converter allows dynamic adjustment of compressor speed to match the material being unloaded – saving energy and reducing wear.

Oil-Free Screw Compressor
The SKL-E Pack uses CVS's proven oil-free screw compressor technology, ensuring clean, contamination-free air – ideal for food, chemical, or construction materials.

Simple Plug-and-Play Setup
Delivered as a ready-to-use unit that can be installed quickly on-site – no complex integrations or additional system components required.

Long-Term Cost Savings
By eliminating diesel fuel usage and reducing mechanical wear, the SKL-E Pack supports a sustainable, low-maintenance unloading process.

Ideal applications for the SKL-E Pack

The SKL-E Pack is specifically designed for stationary unloading of silo trucks in areas where emission-free, low-noise, and energy-efficient operation is essential. Typical use cases include:

Cement plants and ready-mix concrete sites

Animal feed facilities and grain silos

Urban loading/unloading hubs

Chemical or food production sites

Construction zones in residential areas

Municipal or industrial supply centers

With the SKL-E Pack, you benefit from a future-ready, environmentally friendly unloading system that offers the performance of traditional solutions – without the noise, emissions, or fuel costs.

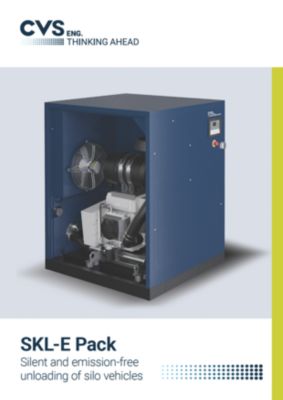

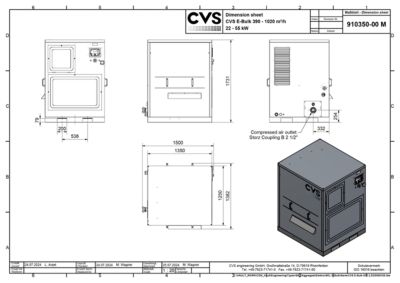

Technical data, Dimensions and Downloads

	Pressure	Speed		Volumeflow	Compressor		E-Motor
	bar (g)		U/min	m³/h		kW
SKL-E 450/1,5/22	1,5	2400 - 2800		395 - 450	SKL 700			22
SKL-E 610/1,5/30	1,5	2400 - 3600		395 - 610	SKL 700			30
SKL-E 520/2,0/30	2	2400 - 3200		385 - 520	SKL 700			30
SKL-E 430/2,5/30	2,5	2400 - 2800		375 - 430	SKL 700			30
SKL-E 600/2,0/37	2	2400 - 3600		385 - 600	SKL 700			37
SKL-E 590/2,5/37	2,5	2400 - 3500		375 - 590	SKL 700			37
SKL-E 800/1,5/37	1,5	2000 - 3000		500 - 800	SKL 1100			37
SKL-E 860/1,5/45	1,5	2000 - 3200		500 - 860	SKL 1100			45
SKL-E 770/2,0/45	2	2000 - 3000		490 - 770	SKL 1100			45
SKL-E 690/2,5/45	2,5	2000 - 2800		480 - 690	SKL 1100			45
SKL-E 980/2,0/55	2	2000 - 3600		490 - 980	SKL 1100			55
SKL-E 810/2,5/55	2,5	2000 - 3150		480 - 810	SKL 1100			55
