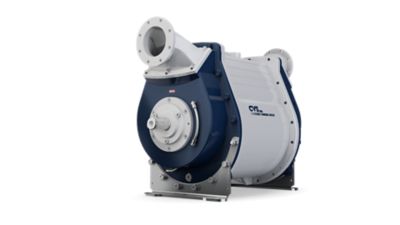

VacuStar WR 2500

Maximum performance for demanding mobile vacuum operations

The VacuStar WR 2500, WR 3100, and WR 4000 are the high-capacity models of the WR Series. Designed for heavy-duty suction vehicles and jetting trucks, these pumps deliver exceptional airflow rates up to 4,063 m³/h – making them some of the most powerful liquid ring vacuum pumps on the market.

Why choose WR 2500–3100–4000?

High airflow capacity – ensures fast and efficient operation, even in large-scale industrial cleaning

Rugged construction – stainless steel impeller and ceramic-coated options withstand abrasive and corrosive media

Built-in cavitation protection – integrated cell ventilation extends pump life

Flexible integration – multiple port positions and swiveling pump body for easy installation

ATEX-certified versions available – safe for explosive environments

Core Features: 

Eccentrically mounted rotor forms a rotating liquid ring that compresses air

Mechanical shaft seal ensures long-lasting, leak-free operation

Swiveling inlet and outlet ports for maximum installation flexibility

Central service water drainage for easy maintenance

Stainless steel impeller (V2A) → abrasion- and corrosion-resistant

Aluminum housing components reduce weight and improve heat dissipation

Integrated cell ventilation → protects the pump from cavitation damage

Technical data (selection)

Model	Max. Airflow (m³/h)	Max. Pressure (bar)	Max. Vacuum (mbar)	Speed Range (rpm)	Power (kW)	Noise (dB(A))	Weight (kg)
WR 2500	2,500	1.5	130	800-1,600	77	70	169
WR 3100	3.100	1.5	130	800-1,600	94	72	186
WR 4000	4,063	1.0	130	800-1,300	131	>72	298

Values may vary depending on cooling water temperature and configuration.

Applications of WR 2500–3100–4000

Large municipal and industrial suction trucks

Combined high-capacity suction and jetting vehicles

Sewer cleaning and pipeline maintenance in demanding conditions

Heavy sludge and grease trap emptying

Vehicles with advanced water recycling systems

The WR 2500–3100–4000 series is the solution for operators who need maximum vacuum power and reliability in the most demanding environments.

Technical data

		VacuStar WR 2500	VacuStar WR 3100	VacuStar WR 4000
Max. volume flow	m³/h	2500	3100	4063
Max. pressure	bar	1,5	1,5	1,0
Max. operating vacuum¹⁾	mbar	130	130	130
speed range	1/min	800 - 1600	800 - 1600	800 - 1300
Max. Power consumption	kW	77	94	131
Weight	kg	169	186	298
