Maximum performance for suction vehicles, jetting trucks, and water recycling units

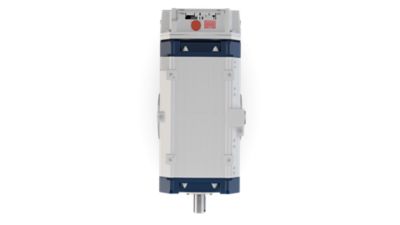

The VacuStar W is a high-performance, water-cooled rotary vane compressor-vacuum pump, engineered for intensive use in suction and jetting vehicles, including those equipped with water recycling systems. Built to withstand extreme operating conditions, it offers excellent vacuum performance, long service life, and operational reliability in even the most demanding environments.
Rugged design meets advanced cooling technology
The VacuStar W features a water-cooled housing, ensuring optimal temperature regulation during extended duty cycles. Its design includes:
Integrated cell ventilation to minimize air outlet temperature
Heavy-duty housing, optionally plasma-nitrided or ceramic-coated for extreme wear and corrosion resistance
Four mounting options on both the top and bottom of the housing for flexible installation
Hydraulic motor compatibility
ATEX-compliant version available (Temperature Class 3 with cell ventilation)
Available models and key specifications
| Model | Max. Airflow (m³/h) | Pressure (bar) | Vacuum (mbar) | Power (kW) | Weight (kg) |
| W 900 | 900 | 2.0 | 100 | 26.0 | 220 |
| W 1300 | 1,300 | 2.0 | 100 | 38.0 | 279 |
| W 1600 | 1,600 | 2.0 | 100 | 47.5 | 339 |
.*All performance data based on 1,500 rpm and with active cell ventilation.
Key options and customization
Ceramic coating or plasma nitriding → Protection against extreme abrasion and chemical attack
Drive variants → Hydraulic or mechanical drive options for integration flexibility
Cell ventilation system → Enables continuous operation at 100 mbar vacuum
ATEX-certified design → For explosion-proof zones (optional)
Model range → W 900 / W 1300 / W 1600 to meet various airflow demands
Customer benefits at a glance
Exceptional vacuum and pressure performance in compact form factor
Reduced thermal load → Extends lifetime of vanes, bearings, and oil
Lower power consumption → Energy-efficient and cost-effective
Superior durability → High-end materials and protective coatings
Lighter weight → Increases payload capacity of your vehicle
Flexible installation → Multiple mounting and drive options
Designed for heavy-duty applications
The VacuStar W is the preferred vacuum solution for:
Municipal and industrial suction vehicles
Combined suction and jetting trucks
Vacuum trucks with integrated water recovery systems
Tank emptying → grease traps, septic tanks, and sludge pits
Pipe and sewer cleaning in urban, industrial, or hazardous areas
Technical data, Dimensions and Downloads
| VacuStar W 900 | VacuStar W 1300 | VacuStar W 1600 | ||
|---|---|---|---|---|
| Volume flow free air delivery | m³/h | 900 | 1300 | 1600 |
| Volume flow at 400 mbar / 18 "Hg | m³/h | 860 | 1220 | 1570 |
| Max. pressure | bar | 2,0 | 2,0 | 2,0 |
| Max. operating vacuum 1) | mbar | 100 | 100 | 100 |
| Speed | 1/min | 1500 | 1500 | 1500 |
| Max. Power consumption at 0.5 bar | kW | 26,0 | 38,0 | 47,5 |
| Weight | kg | 220 | 279 | 339 |
1) with cell ventilation Subject to technical changes
VacuStar W

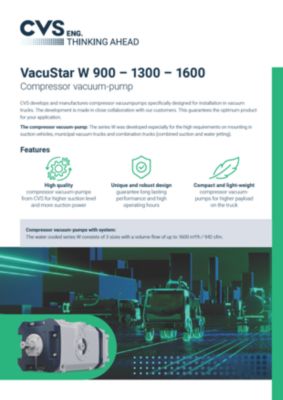

Download the product brochure of VacuStar W
- Filename
- CVS_Data_Sheet_VacuStar_W_900_1300_1600_EN.pdf
- Size
- 854 KB
- Format

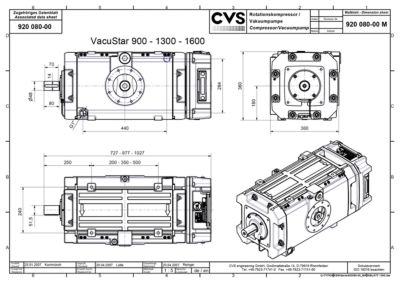

VacuStar W product dimensions
Download the product dimensions of the VacuStar W 900 - 1600 - 1900
- Filename
- VacuStar_900_1300_1600.pdf
- Size
- 642 KB
- Format
