Durable, quiet, and moisture-tolerant vacuum solutions
Liquid ring vacuum pumps are ideal for demanding applications involving wet gases, vapors, or particulate-laden air. With a simple and rugged design, they offer smooth, low-maintenance performance in harsh industrial environments.

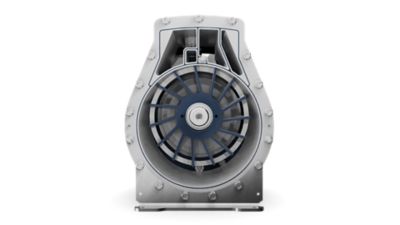

Operating principle of liquid ring compressor vacuum pumps
- Eccentric rotor and liquid ring
An eccentrically mounted rotor spins inside a partially liquid-filled chamber. - Formation of compression chambers
Centrifugal force creates a rotating liquid ring, forming sealed chambers of varying volume between the rotor and the ring. - Gas suction
In the intake phase, increasing chamber volume draws gas into the pump. - Compression
As the rotor continues turning, the chambers shrink, compressing the gas. - Exhaust
Compressed gas exits through the discharge port; some liquid may be recirculated.
Key Advantages
Handles wet, contaminated gases
Ideal for condensing vapors, saturated gas, and chemical-laden air.
Self-priming and robust
Works reliably under fluctuating or wet inlet conditions.
Quiet and low-vibration
Liquid dampening ensures smooth and silent operation.
ATEX-compliant & explosion-proof
No sparks or friction points—safe for hazardous zones.
Low maintenance
Minimal moving parts, no oil changes (for water-sealed types).
Economical operation
Cost-effective for large volumes, especially in continuous use.
Durable under harsh conditions
Resistant to fouling and suitable for 24/7 duty.
Applications
Chemical & Pharmaceutical: Solvent recovery, distillation, drying, crystallization.
Pulp & Paper: Dewatering and vacuum for forming sections.
Food & Beverage: Vacuum packaging, liquid degassing, vacuum drying.
Plastics & Rubber: Degassing in extrusion, thermoforming.
Power Generation: Condenser evacuation, turbine air removal.
Mining & Metallurgy: Process gas removal, off-gas handling.
Environmental & Wastewater: Biogas extraction, vacuum filtration.
Textiles: Fabric drying and vacuum stabilization.
Medical & Lab Use: Vacuum distillation and fume extraction.
