Compact, Efficient, and Oil-Free
The SKL LS oil-free screw compressor series is specially designed for mobile use on silo trailers as well as for stationary unloading systems. Wherever compact design, high efficiency, and oil-free compressed air are essential, the SKL700–1100 LS delivers reliable performance.
Covering a volume flow range of 385 to 1,050 m³/h, these compressors are engineered to meet a wide variety of flow requirements. With input speeds from 652 to 1,800 rpm, both the SKL700 and SKL1100 models offer exceptional flexibility for integration into various PTO systems.
The custom-developed rotor profile ensures:
High efficiency
Low noise emissions
Minimized discharge temperature of the compressed air
This makes the SKL LS series ideal for transporting sensitive bulk materials, including food, plastic pellets, and hygroscopic substances.
Technical Highlights
- Oil-free screw compressor for hygienic compressed air
- Volume flow range: 385 – 1,050 m³/h
- Input speeds:
SKL 700:
1,200–1,800 rpm / 975–1,465 rpm
960–1,440 rpm / 780–1,172 rpm
SKL 1100:
1,000–1,800 rpm / 815–1,465 rpm
800–1,440 rpm / 652–1,172 rpm
Constant operating pressure: up to 2.5 bar (g)
High-efficiency screw design with low discharge temperature
Integrated oil pump and replaceable oil filter
Compact footprint for easy vehicle installation
Key Benefits
Robust construction for reliable performance under tough conditions
Durable technology, even with frequent use
Lightweight design for easy integration into mobile units
Wide speed range allows optimal adaptation to varying discharge scenarios
Consistent pressure up to 2.5 bar (g) across the full speed range
Space-saving installation – perfect for tight spaces
Maintenance-friendly with integrated oil pump and easy filter access
Ideal Applications
The SKL700–1100 LS series is your go-to solution for pneumatic discharge of:
Construction materials: cement, sand, lime, fly ash
Food products: sugar, flour, grain
Plastics: pellets and granulates
Chemicals and minerals: salt, animal feed, and other sensitive bulk materials
Thanks to its oil-free compressed air and low outlet temperatures, your product quality remains uncompromised – free from contamination, deformation, or condensation.
Why choose CVS?
At CVS Engineering GmbH, all components are developed and manufactured in Germany. With decades of expertise and a deep vertical integration, we ensure top quality, innovation, and long-term durability.
The SKL LS series reflects our commitment to excellence in silo transport applications – combining maximum operational safety, efficient performance, and a strong partnership built on trust.
Designed for silo trailer applications
The SKL700 to SKL1100 LS models are built for use in silo trailers, where lightweight design, robust performance, and compact dimensions are crucial. Whether you're transporting cement, soda, flour, lime, or plastic granules, this series offers optimal flexibility thanks to its wide speed range – ensuring consistent efficiency and reliability under all unloading conditions.
Technical data, Dimensions and Downloads
| SKL 700 LS | SKL 1100 LS | ||||||
| At speed | 1/min | 1950 | 2440 | 2930 | 1630 | 2440 | 2930 |
| Volume flow free air delivery | m³/h | 420 | 540 | 650 | 550 | 850 | 1050 |
| Volume flow at 2 bar g | m³/h | 385 | 485 | 600 | 490 | 775 | 980 |
| Max. pressure | bar | 2,5 | 2,5 | ||||
| Speed range | 1/min | 1950 - 2930 | 1630 - 2930 | ||||
| Power requirement at 2 bar g / 28.4 psig | kW | 22,5 | 28 | 33,5 | 29 | 43,5 | 52,5 |
| Weight | kg | 126 | 135 | ||||

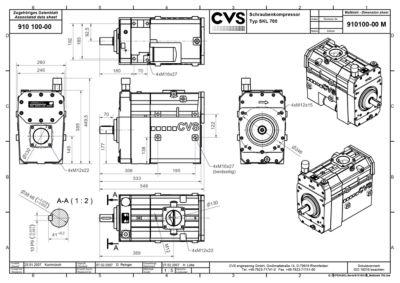

SKL 700 product dimensions
Download the product dimensions of SKL 700
- Filename
- SKL_700.pdf
- Size
- 581 KB
- Format

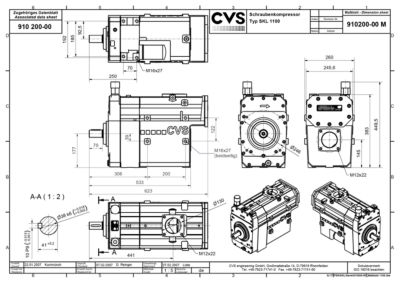

SKL 1100 product dimensions
Download the product dimensions of SKL 1100
- Filename
- SKL_1100.pdf
- Size
- 566 KB
- Format
