Compact, efficient, and oil-free

The SKL LS oil-free screw compressor series is specially designed for mobile use on silo trailers as well as for stationary unloading systems. Wherever compact design, high efficiency, and oil-free compressed air are essential, the SKL 700–1100 LS delivers reliable performance.

Covering a volume flow range of 385 to 1,050 m³/h, these compressors are engineered to meet a wide variety of flow requirements. With input speeds from 652 to 1,800 rpm, both the SKL700 and SKL1100 models offer exceptional flexibility for integration into various PTO systems.

The custom-developed rotor profile ensures:

High efficiency
Low noise emissions
Minimized discharge temperature of the compressed air

This makes the SKL LS series ideal for transporting sensitive bulk materials, including food, plastic pellets, and hygroscopic substances.

Technical Highlights

Oil-free screw compressor for hygienic compressed air

Volume flow range: 385 – 1,050 m³/h

Input speeds:

SKL 700:

1,200–1,800 rpm / 975–1,465 rpm

960–1,440 rpm / 780–1,172 rpm

SKL 1100:

1,000–1,800 rpm / 815–1,465 rpm

800–1,440 rpm / 652–1,172 rpm

Constant operating pressure: up to 2.5 bar (g)

High-efficiency screw design with low discharge temperature

Integrated oil pump and replaceable oil filter

Compact footprint for easy vehicle installation

Key Benefits

Robust construction for reliable performance under tough conditions

Durable technology, even with frequent use

Lightweight design for easy integration into mobile units

Wide speed range allows optimal adaptation to varying discharge scenarios

Consistent pressure up to 2.5 bar (g) across the full speed range

Space-saving installation – perfect for tight spaces

Maintenance-friendly with integrated oil pump and easy filter access

Ideal Applications

The SKL700–1100 LS series is your go-to solution for pneumatic discharge of:

Construction materials: cement, sand, lime, fly ash

Food products: sugar, flour, grain

Plastics: pellets and granulates

Chemicals and minerals: salt, animal feed, and other sensitive bulk materials

Thanks to its oil-free compressed air and low outlet temperatures, your product quality remains uncompromised – free from contamination, deformation, or condensation.

Why choose CVS?

Compressor technology – Made in Germany

At CVS engineering GmbH, all components are developed and manufactured in Germany. With decades of expertise and a deep vertical integration, we ensure top quality, innovation, and long-term durability.

The SKL LS series reflects our commitment to excellence in silo transport applications – combining maximum operational safety, efficient performance, and a strong partnership built on trust.

Designed for Silo Trailer Applications

The SKL700 to SKL1100 LS models are built for use in silo trailers, where lightweight design, robust performance, and compact dimensions are crucial. Whether you're transporting cement, soda, flour, lime, or plastic granules, this series offers optimal flexibility thanks to its wide speed range – ensuring consistent efficiency and reliability under all unloading conditions.

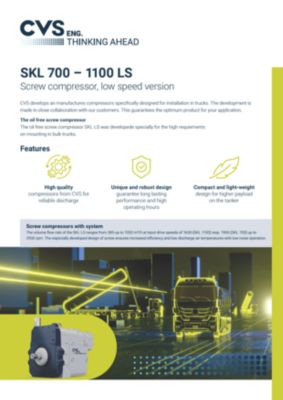

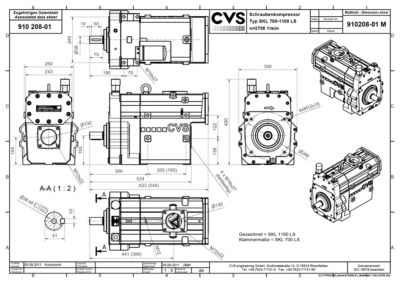

Technical data, dimensions and downloads

		SKL 700 LS			SKL 1100 LS
At speed	1/min	1950	2440	2930	1630	2440	2930
Volume flow free air delivery	m³/h	420	540	650	550	850	1050
Volume flow at 2 bar g	m³/h	385	485	600	490	775	980
Max. pressure	bar	2,5			2,5
Speed range	1/min	1950 - 2930			1630 - 2930
Power requirement at 2 bar g / 28.4 psig	kW	22,5	28,0	33,5	29,0	43,5	52,5
Weight	kg	126			135
