Lightweight. Efficient. Built for mobile use.
The VacuStar L 400 is a compact, air-cooled rotary vane compressor designed to meet the demanding requirements of small suction vehicles. With a delivery rate of up to 345 m³/h, this robust and lightweight compressor is ideal for vacuum loading and unloading tasks in mobile applications where space, reliability, and performance matter.
Engineered by CVS engineering, the L 400 offers a reliable and energy-efficient solution for municipal and industrial waste collection, sludge and grease trap emptying, and small-scale sewer cleaning operations.
Key features of the VacuStar L 400
Air-cooled housing → no need for external cooling systems
Built-in oil pump → ensures automatic lubrication during operation
Clearly visible oil sight glass for quick and easy maintenance
Compact design → ideal for vehicles with limited space
Multiple drive options:
Hydraulic motor (optional)
V-belt
PTO shaft
Flexible coupling
Optimized cooling system improves durability and extends component life
Customer benefits
Lightweight construction → maximizes payload of your vehicle
Compact footprint → ideal for small or medium suction units
Robust and reliable → reduced downtime and maintenance effort
Flexible installation with multiple drive configurations
Optimized air cooling improves long-term performance
Made in Germany → trusted quality and engineering precision
Typical applications
The VacuStar L 400 is especially suited for:
Compact suction vehicles for municipal or industrial use
Sludge pit and septic tank emptying
Grease trap servicing
Mobile waste disposal units
Vacuum transport of liquids or sludge in tight urban environments
Technical Data, Dimensions and Downloads
| VacuStar L 400 Kompressor | ||
| Volume flow free air delivery | m³/h | 345 |
| Volume flow at 2 bar g | m³/h | 305 |
| Max. pressure | bar | 2,0 |
| Speed | 1/min | 1500 |
| Power requirement at 2 bar g / 28.4 psig | kW | 19,0 |
| Weight | kg | 79 |
Subject to technical changes
VacuStar L 400 Compressor

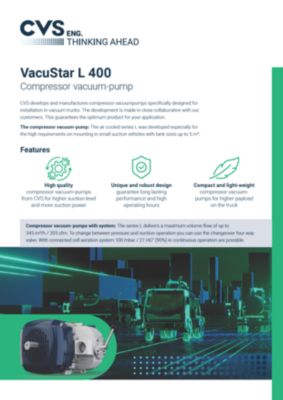

Download the product brochure of VacuStar L 400
- Filename
- CVS_Data_Sheet_VacuStar_L_400_EN.pdf
- Size
- 1 MB
- Format

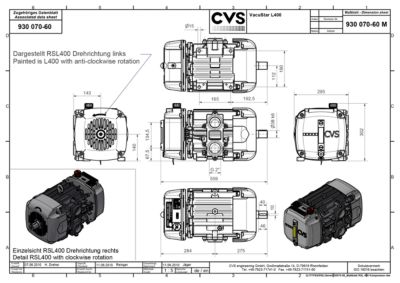

VacuStar L 400 Compressor product dimensions
Download the product dimensions of the VacuStar L 400
- Filename
- VacuStar_L_400_compressor.pdf
- Size
- 1005 KB
- Format
