Compact, reliable, and oil-free – for clean and efficient liquid unloading

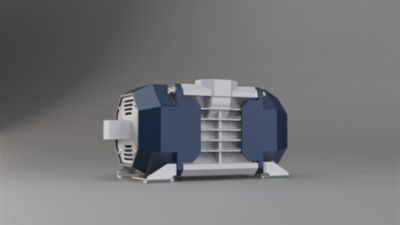

The RKL 160 is a specially engineered, oil-free rotary compressor designed for the pneumatic unloading of tank vehicles transporting liquid products. With its compact design, lightweight construction, and flexible installation options, it’s the ideal solution for modern vehicle integration and demanding fluid transfer applications.
Delivering a suction flow rate of 116 to 154 m³/h and a constant operating pressure of up to 2.5 bar (g), the RKL 160 provides the power and reliability required for fast, clean, and safe unloading of liquids. Its intelligent cooling system ensures stable operating temperatures and extended service life – even under continuous use.
Technical Highlights
Suction volume flow: 116–154 m³/h
Operating pressure: up to 2.5 bar (g), constant
Efficient cooling system for longer duty cycles
Compact size and low weight – ideal for limited installation space
Permanently lubricated bearings for minimal maintenance
Drive options: hydraulic motor or PTO shaft
Clockwise or counterclockwise rotation possible
Flexible inlet and outlet port positions
Lightweight aluminum fan wheels and covers
Your benefits at a glance
Flexible installation due to compact size and adjustable connection ports
Low maintenance thanks to robust, sealed bearing technology
Reliable operation under tough conditions with minimal servicing
Oil-free air compression – ideal for applications requiring contamination-free delivery
Weight-optimized design to reduce vehicle payload impact
Durable and efficient – engineered for continuous operation
Key Features
Oil-free compression
Guarantees contamination-free air – ideal for liquid food-grade and sensitive chemical unloading.
Compact & lightweight
The RKL 160 is designed for seamless integration into a wide range of tank truck chassis, without sacrificing performance.
High efficiency & low wear
Optimized for frequent operation and long lifecycle with intelligent cooling and greased-for-life bearings.
Flexible mounting options
With adjustable suction and pressure port positioning and reversible drive direction, installation is simplified – regardless of vehicle layout.
Hydraulic or mechanical drive
Compatible with both hydraulic motors and power take-off shafts – choose the configuration that fits your system best.
Ideal applications for the RKL 160
Mineral oils and fuel oils
Liquid fertilizers
Industrial solvents
Agricultural chemicals
Municipal and utility services
Waste management and environmental services
Its oil-free compression, low maintenance, and efficient performance make it the preferred choice for sectors such as industrial supply, agriculture, waste handling, and municipal fleet operations. With the RKL 160, you benefit from reliable, hygienic, and energy-efficient air compression – developed and built for the challenges of modern liquid transport logistics.
Technical data, dimensions and downloads
| RKL 160 | ||
| Volume flow free air delivery | m³/h | 116 - 154 |
| Volume flow at 2 bar g | m³/h | 92 - 123 |
| Max. pressure | bar | 2,5 |
| Speed | 1/min | 1200 - 1600 |
| Power requirement at 2 bar g / 28.4 psig | kW | 6,5 - 8,6 |
| Weight | kg | 33 |
RKL 160 brochure
Download the product brochure of RKL 160
- Filename
- Data Sheet RKL 160.pdf
- Size
- 2 MB
- Format
RKL 160 product dimensions
Download the product dimensions of the RKL 160
- Filename
- RKL_160.pdf
- Size
- 543 KB
- Format
