High performance in a compact design – Built for suction vehicles up to 5 m³
The VacuStar L 400 is an air-cooled rotary vane compressor-vacuum pump, engineered specifically for compact suction vehicles with tank capacities of up to 5 m³. Its efficient design, robust construction, and versatile drive options make it the ideal solution for municipal, industrial, and environmental applications.
Intelligent design for reliable operation
The VacuStar L 400 operates on the multi-vane (rotary vane) principle:
A rotor equipped with sliding vanes rotates within a cylindrical housing.
During rotation, chambers form that increase in volume during suction and decrease during compression.
The system is air-cooled and optimized for vehicle integration, requiring no external water or oil cooling.
Equipped with an easy-to-read oil sight glass, a four-way change-over valve (for pressure and vacuum modes), and cell ventilation ports for enhanced operational control.
Flexible options for every application
To meet diverse installation and operational requirements, the VacuStar L 400 offers multiple drive configurations and protective upgrades:
Drive Options:
Belt drive
Cardan shaft
Flexible coupling
Hydraulic motor (optional)
Housing Upgrade:
- Plasma-nitrided housing for superior resistance to:
- Abrasive wear
- Adhesive wear
- Corrosion
Key benefits for your vehicle fleet
Compact footprint → Increases payload and frees up installation space
Durable construction → Minimizes downtime and reduces maintenance frequency
High suction performance with low energy consumption
Flexible mounting → Multiple drive options for easy vehicle integration
User-friendly maintenance → Easy access and clear oil level visibility
Made in Germany → Precision engineering and superior manufacturing quality
Ideal for a wide range of mobile applications
The VacuStar L 400 is the perfect solution for compact and specialized suction systems in:
Municipal and utility service vehicles
Suction vehicles for:
Grease trap cleaning,
Septic tank and pit emptying,
Channel and sewer cleaning
- Industrial vacuum units
- Mobile disposal and dewatering systems
Technical Data, Dimensions and Downloads
| VacuStar L 400 Kompressor | ||
|---|---|---|
| Volume flow free air delivery | m³/h | 345 |
| Volume flow at 2 bar g | m³/h | 305 |
| Max. pressure | bar | 2,0 |
| Speed | 1/min | 1500 |
| Power requirement at 2 bar g / 28.4 psig | kW | 19,0 |
| Weight | kg | 79 |
Subject to technical changes
VacuStar L 400
Download the product brochure of VacuStar L 400
- Filename
- CVS_Data_Sheet_VacuStar_L_400_EN.pdf
- Size
- 1 MB
- Format

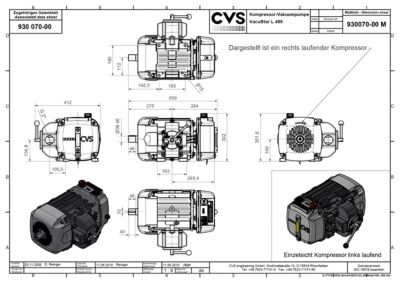

VacuStar L 400 product dimensions
Download the product dimensions of the VacuStar L 400
- Filename
- VacuStar_L_400.pdf
- Size
- 1007 KB
- Format
